Initial Marking Out

For my case mod, I wanted something different from the normal rectangluar window but at the same time I do not want something that is so hard to cut. Therefore I came up with this "box winthin box" idea. I always prefer to let the pictures do the talking so refer to the Pics for a complete guide.

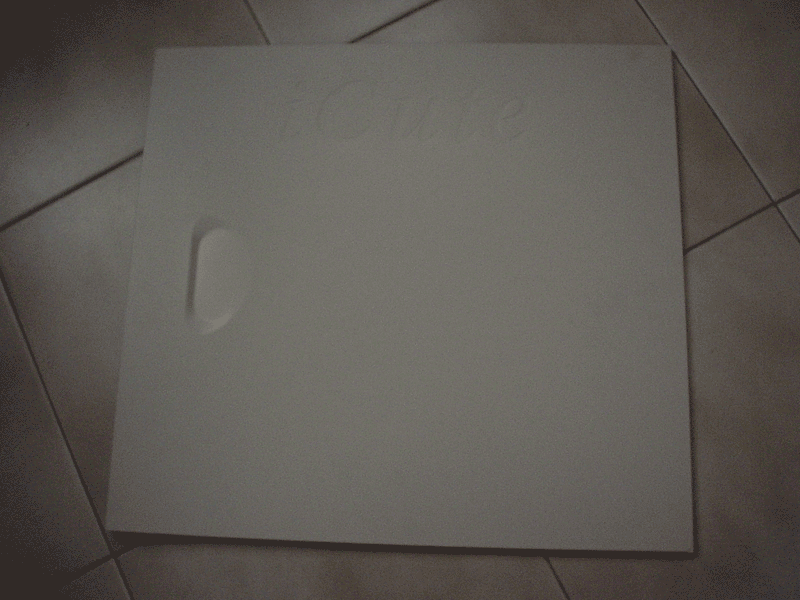

This pictures shows the pre-mod side pannel of my icute casing. Humm.. Simply too plain.

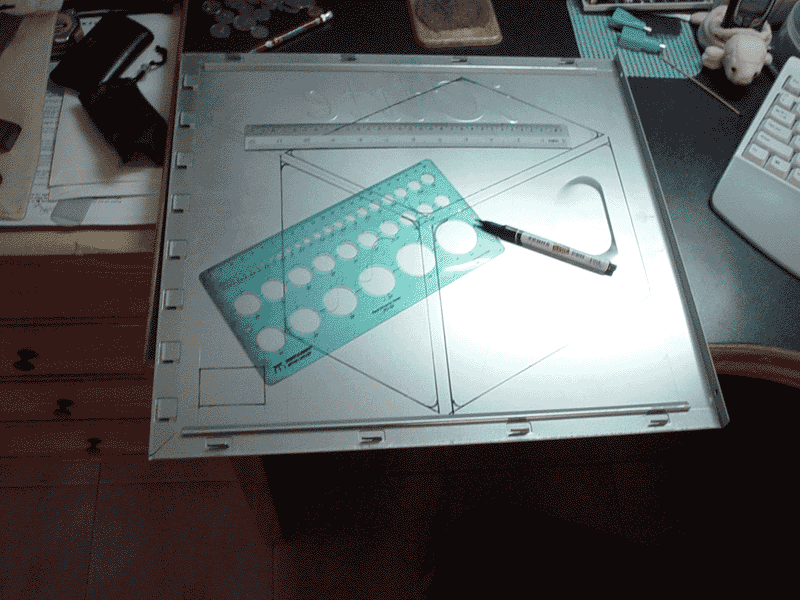

Yeah all I did was use some marker pen, ruler and this stencer that draws circles for the rounded corners. I didn't bother to tape it up because I was too lazy and it would increase the cost of production. If you think you to tape it up please do.

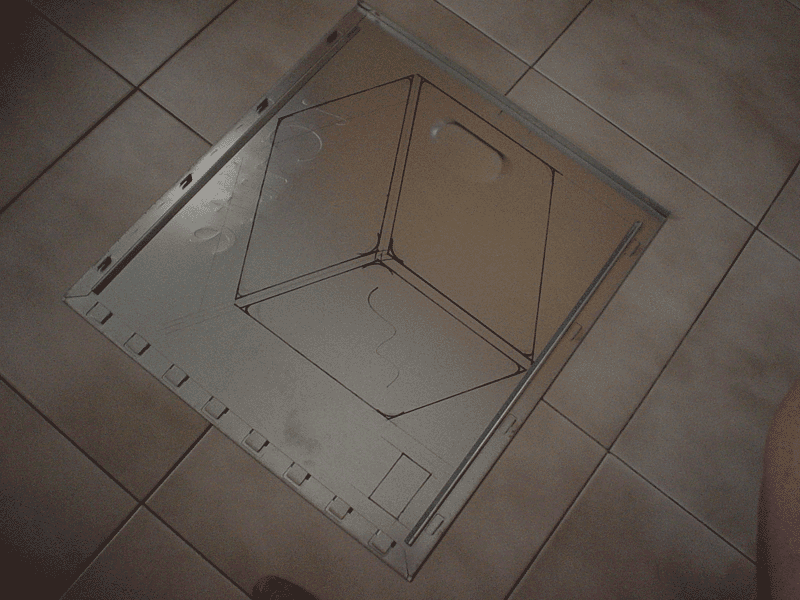

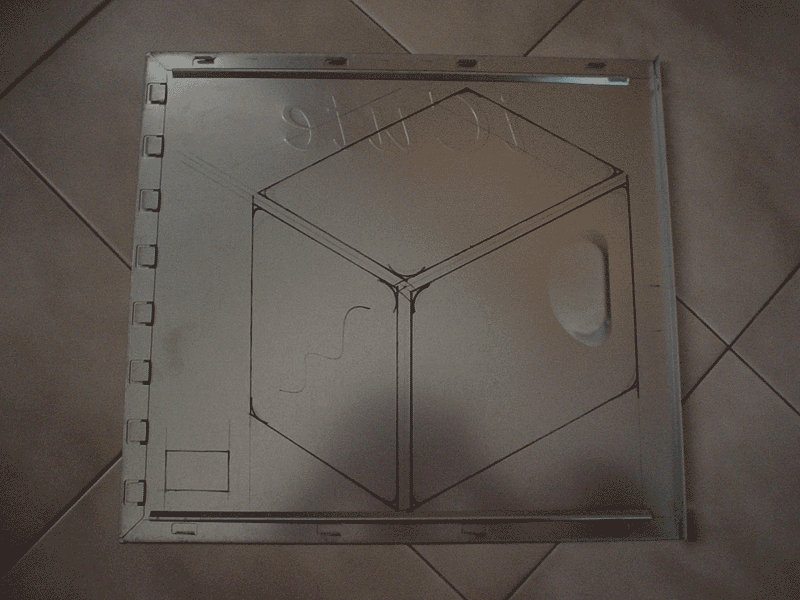

The completed marking out. I wonder how it looks when the cutting is done? Hum would the "center" be hold? Nevermind I plan to make it into a rectangluar mod if anything goes wrong!
